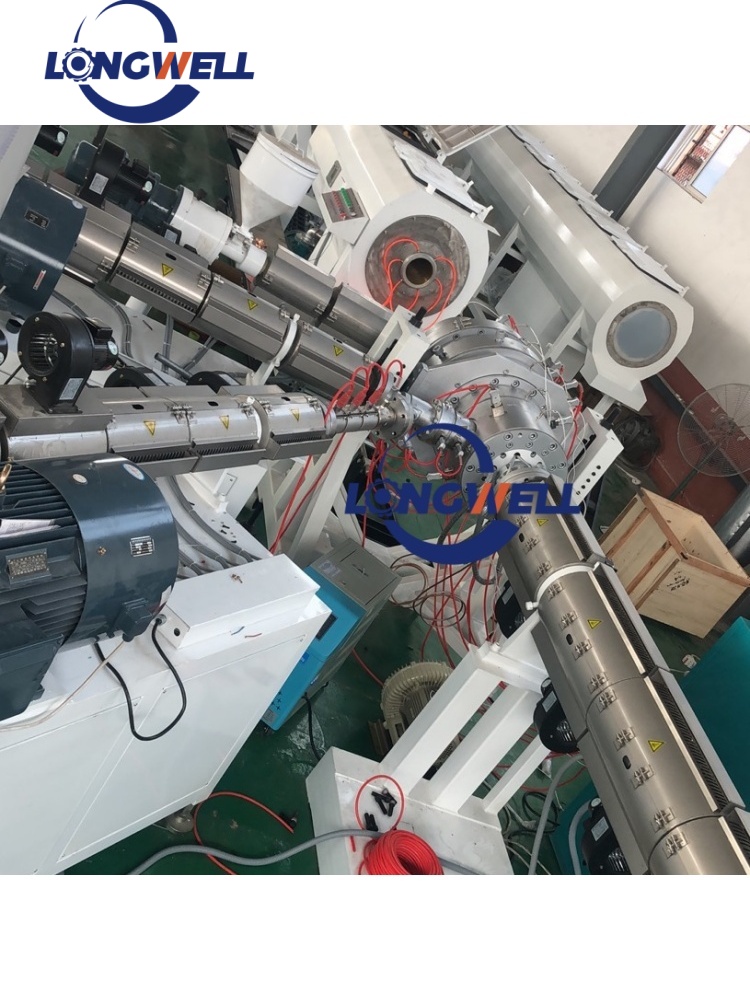

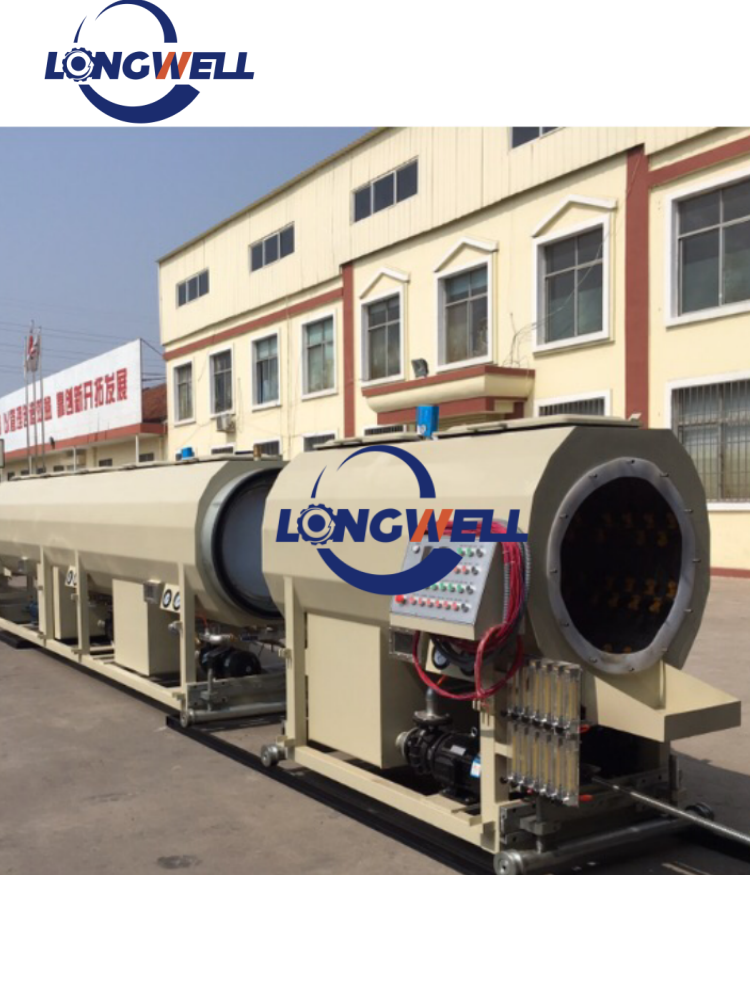

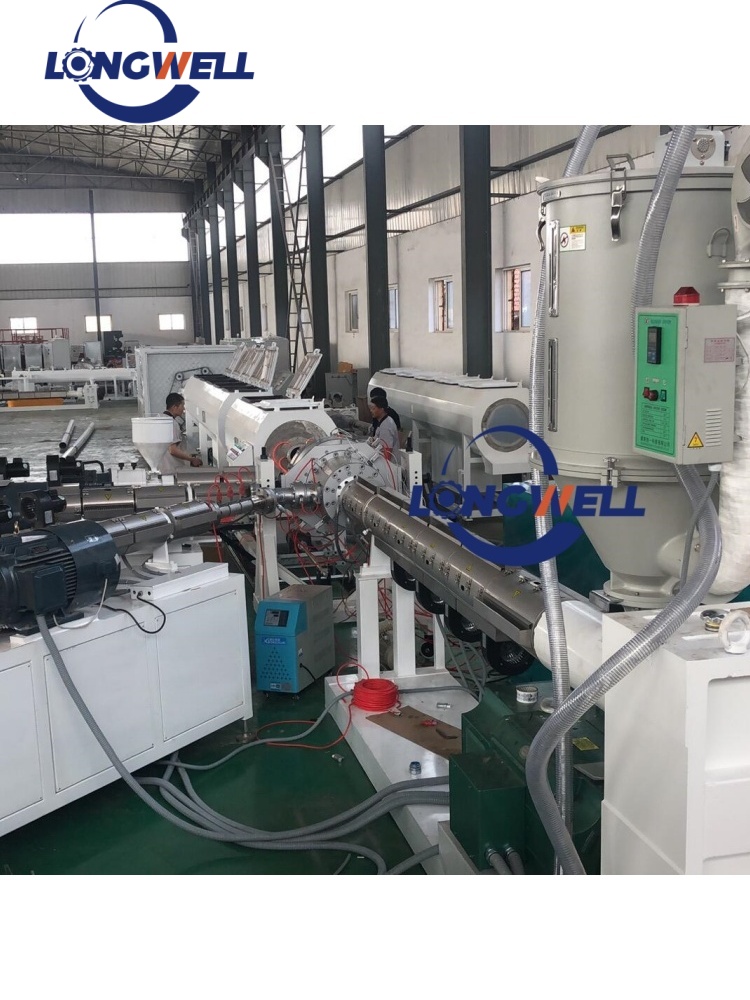

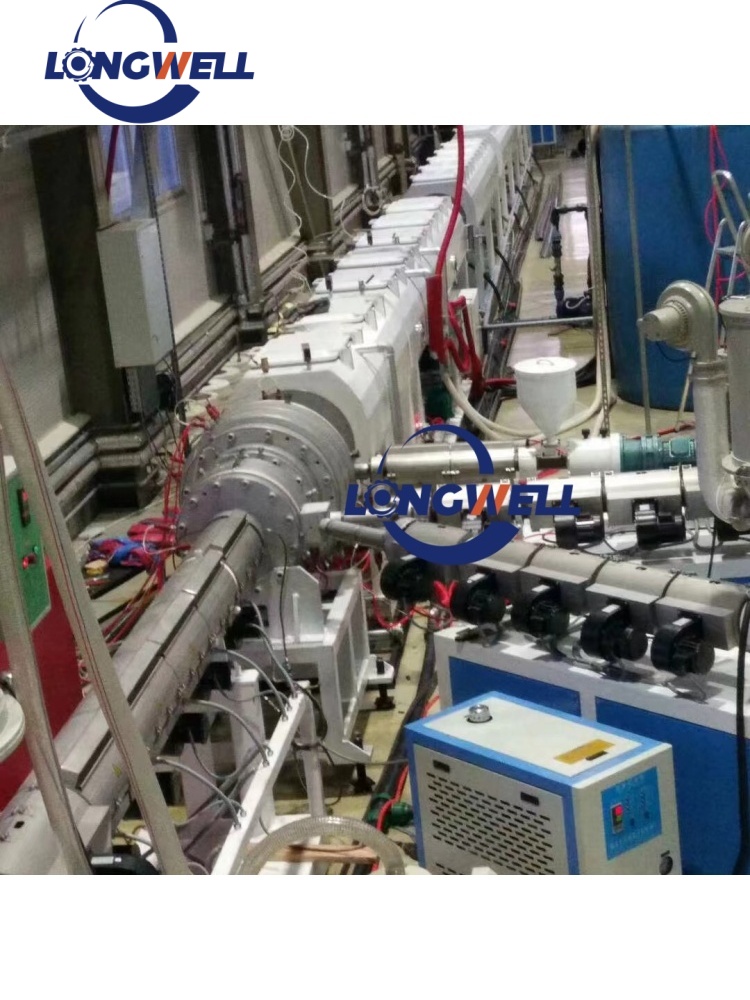

HDPE 16-1200 Pipe Extrusion Line
Application: This extrusion line is usually being applied in field of HDPE Water-supply Pipe, Gas-supply pipe, Coal Mine and etc.
Features and Superiorities: The technique of this line is synchronous with Europe’s and suitable for extruding HDPE, PP, and other high-quality polyolefin pipe. The screw adopts advanced Separate Type Design, which can separate the material into solid and fluid, increase the uniformity of the temperature of melting material, reduce the heating inner force of material. This extrusion line is highly automatic and steadily operating.
The Main Technical Parameters:
| Diameter (mm) | Extruder | Output | Total Power |
| Ø16-Ø63 | SJ65/33 SJ35/25 | 150 kg/h | 120kw |
| Ø20-Ø125 | SJ65/33 SJ35/25 | 250 kg/h | 140kw |
| Ø75-Ø315 | SJ90/33 SJ35/25 | 450 kg/h | 260kw |
| Ø140-Ø500 | SJ90/33 SJ35/25 | 600 kg/h | 325kw |
| Ø250-Ø630 | SJ120/33 SJ35/25 | 800 kg/h | 478kw |
| Ø315-Ø800 | SJ120/33 SJ35/25 | 900kg/h | 585kw |
| Ø450-Ø1000 | SJ150/33 SJ35/25 | 1200kg/h | 745kw |
| Ø630-Ø1200 | SJ150/33 SJ35/25 | 1500kh/h | 815kw |
